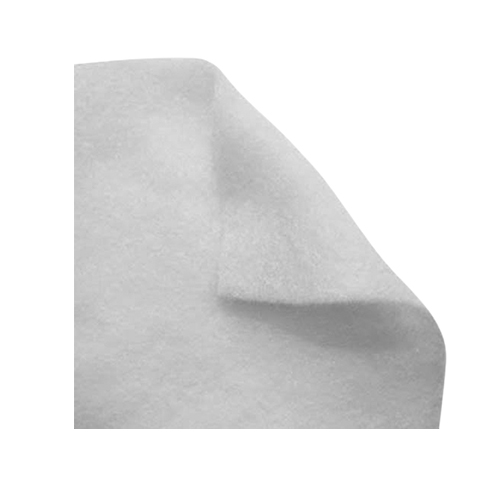

Breather Fabric

Description Property
Product Name Breather Fabric
Material used Polyester
Weight (nominal) 130 (±7%)GSM
Width 120mm / 1200mm (-10mm, +10mm)
Length 100mtr (-0.5mtr, +0.5mtr)
Colour White
Elongation at break Above 80 %
Air permeability(cm³/cm²/sec) at 5mm WH 190 ± 15%
Melting Temperature 250°C
Category:

Description

Our Breather Fabrics are all manufactured from polyester fibres which are needle punched to form the non-woven, feltlike fabric. There are no chemical binders used in these products. The tex of the fibre, the fibre length and the punching density have all been optimised to create breather fabrics with optimum characteristics. All the breather fabrics have been designed to produce good elongation in all directions, so that they can be draped easily over complex curvatures. This helps to minimise any bridging situations which may otherwise tend to occur.

Specifically designed to allow the vacuum to flow from the bag connector to the end of the tool or to bleed of resin from the laminate.
